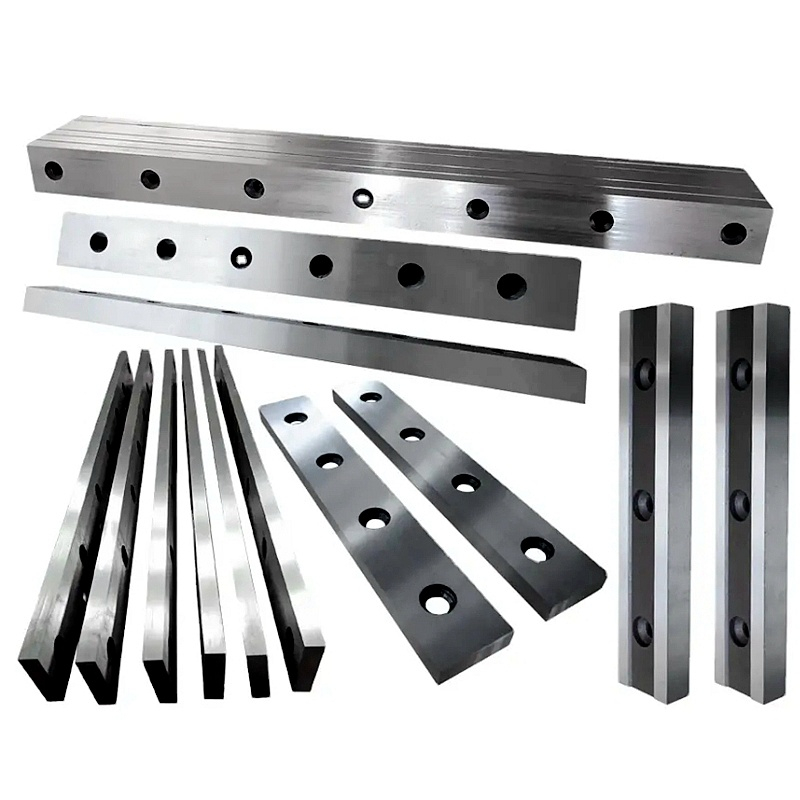

Industrial Shear Machine Guillotine Blade of Long/Round Tooth Cutting Blades of Circular Slitting Knife for Hydraulic Metal Sheet Tool Accessories Manufacturer

Product Advantage

1. Ultra-high wear resistance and life

Using Cr12MoV, H3 material and other ultra-high wear-resistant shearing machine blade material, vacuum quenching process treatment, hardness up to HRC58-62, greatly extend the service life.

2. Precision shear effect

Edge grinding accuracy of ±0.02mm, to ensure smooth incision without burrs, high-precision cutting blade supplier, suitable for "precision cutting machine blade processing technology".

3. Multi-material adaptability

Can customize different hardness, cutting edge Angle of the cutting machine blade, support stainless steel, copper plate, composite materials and other materials cutting, such as "multi-material cutting blade design".

4. High efficiency, energy saving and safety

Optimize blade clearance design, reduce equipment energy consumption, improve shear cutter blade efficiency, low energy cutting tool technology, in line with the "energy-saving blade configuration".

5. Quick replacement and easy maintenance

- Modular blade structure design, detachable cutter blade set, reduce downtime, adapt to "industrial-grade quick tool change shearing machine system".

Technical Parameters

Gap adjustment: According to the thickness and material of the shear material (such as stainless steel, aluminum, etc.), adjust the gap between the upper and lower blades (usually 5%-10% of the thickness of the material).

Sheet material: small gap (e.g. 0.03-0.1mm).

Thick plate or hard material: increase the gap appropriately.

Product Uses

The main application areas of cutting machine blades

1. Metal processing industry: shear steel plate, stainless steel plate, aluminum plate and other metal materials, widely used in sheet metal processing, mechanical manufacturing.

2. Automobile manufacturing: used for precision cutting of body panels and parts, such as "special cutting machine blade for automobile manufacturing".

3. Home appliance industry: cutting refrigerator, washing machine and other shell metal parts, suitable for "high-precision sheet metal cutting tools".

4. Construction field: Processing steel structure and curtain wall materials, such as "high-strength shears for construction".

5. Aerospace: For titanium alloy, composite materials and other special materials, need "high temperature and wear resistance shearing machine blade".

Product Operate Guide

Installation focus

1. Prepare for security

Cut off the power supply and relieve the pressure to ensure that the device is shut down.

Wear protective gloves to avoid blade scratches.

2. Cleaning and inspection

Remove oil and debris from the blade installation area.

Check the new blade for wear, cracks or chipped edges, and make sure the old blade is reusable.

Check that the tool holder and fixing bolts are intact and free from deformation or corrosion.

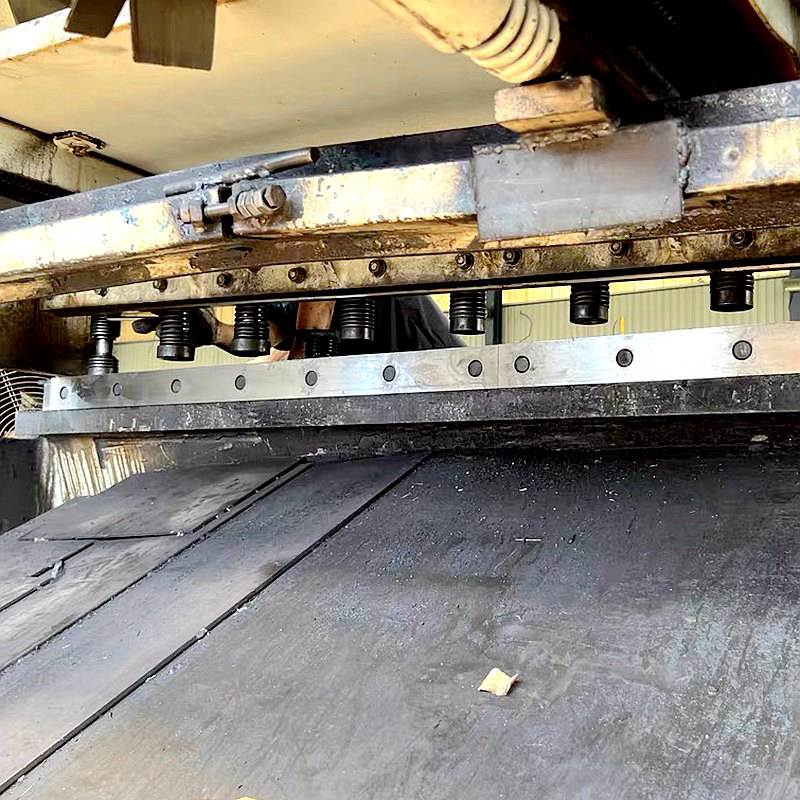

3. Install the blade

Upper and lower blade alignment: Ensure that the cutting edges of the upper blade (movable blade) are aligned with those of the lower blade (fixed blade) to prevent uneven cutting or blade damage.

Gap adjustment: According to the thickness and material of the shear material (such as stainless steel, aluminum, etc.), adjust the gap between the upper and lower blades (usually 5%-10% of the thickness of the material).

Sheet material: small gap (e.g. 0.03-0.1mm).

Thick plate or hard material: increase the gap appropriately.

Fastening bolt sequence: Tighten the bolts gradually in diagonal sequence to ensure uniform force on the blade and avoid tilting or loosening.

4. Lubrication and rust prevention

Apply a small amount of grease or anti-rust oil to the cutting edge and mounting surface of the blade to reduce friction and corrosion.

FAQ

Q1.Do you have it in stock?

A1.Dear.there are some products we have in stock and some we don't. You can send me your product and I will show you.

Q2.Do you have a warranty?

A2. Dear, there is a warranty period, if you use the normal cracked knife and other situations, we have a one-year warranty period, normal wear, blade hit iron or hard objects are not within the scope of warranty.

Q3.Do you have the outgoing quality inspection report?

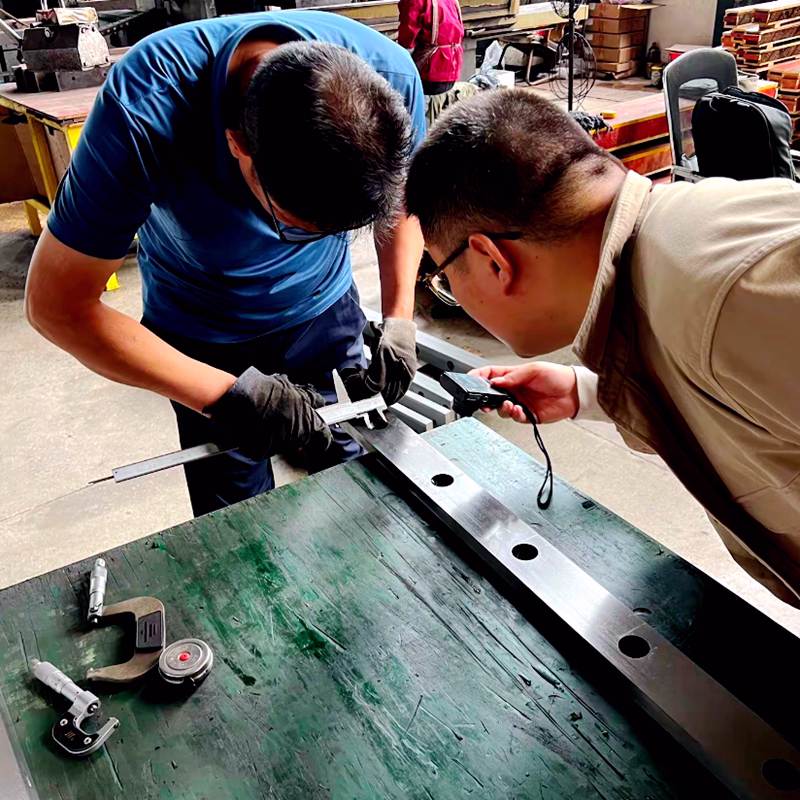

A3.Of course, dear, before each blade leaves the factory, we will do a detailed test, such as hardness, width and thickness.
